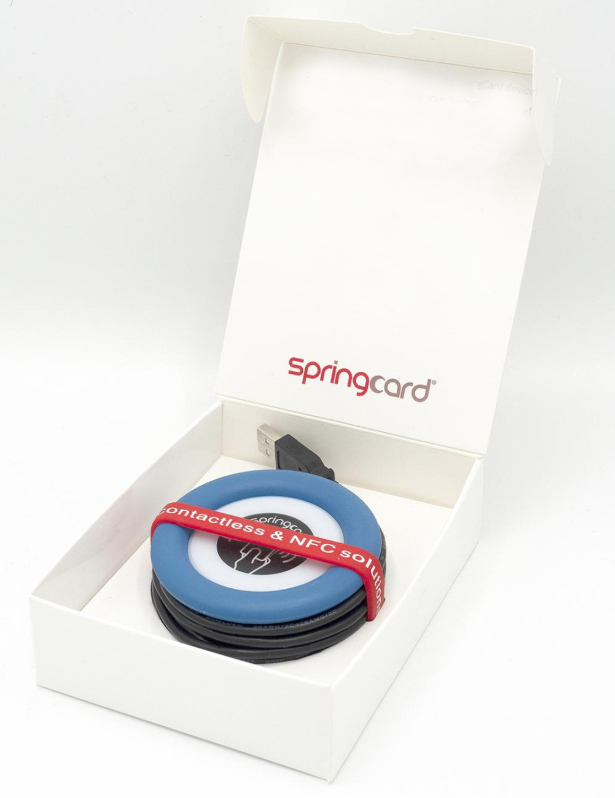

SpringCard offers a 13.56 MHz contactless smart card reader (coupling device) compliant with the PC/SC standard: the Prox’N’Roll PC/SC HSP
It reads and writes a wide range of smartcards and tags as well as smartphones.
It runs with any PC/SC software that enables very easy software integration and application development.
When ISO14443 standard is used, the best transaction speed is reached thanks to its USB interface.
Light and sound signals are set up easily thanks to an application.

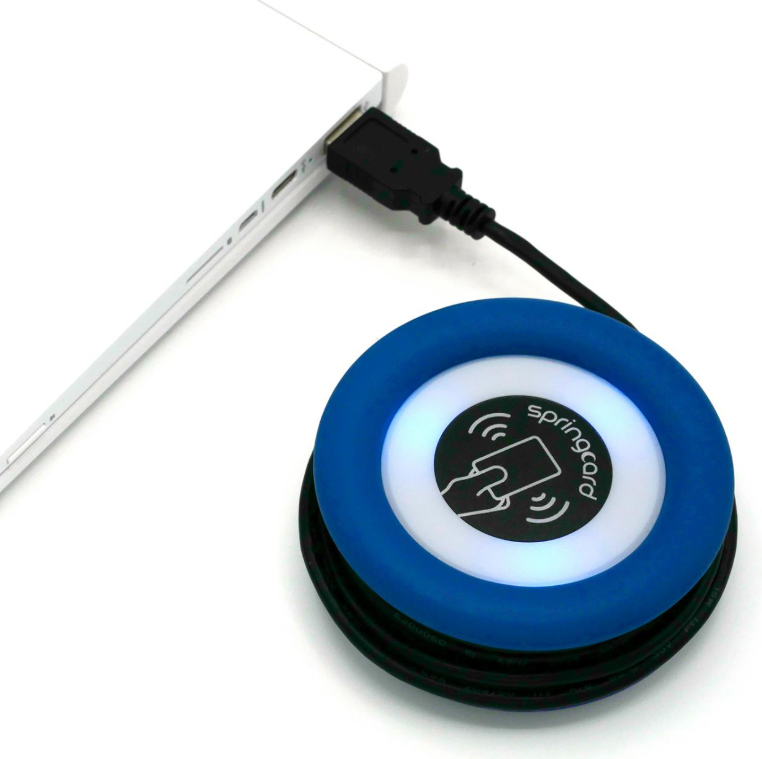

SpringCard USB & PC/SC contactless reader

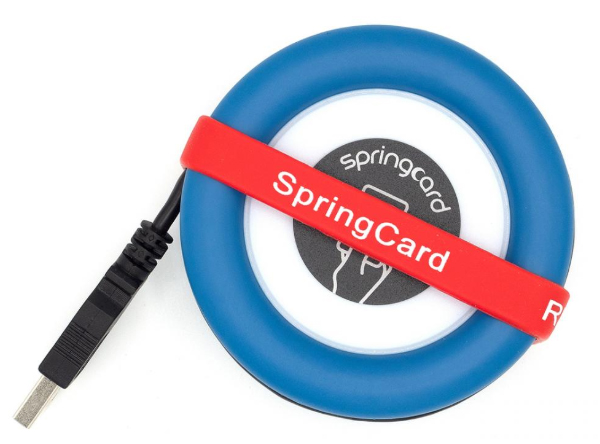

The Prox’N’Roll PC/SC HSP is an efficient and versatile desktop contactless coupler, supporting all NFC tags,
ISO 14443 proximity smartcards and ISO 15693 RFID/vicinity tags.
Description
Overview
Overview
ATTRACTIVE AND FAST
The Prox’N’Roll PC/SC HSP interoperates with virtually any chip in the 13.56MHz range, including popular
NXP MIFARE® products and all kind of NFC tags. Thanks to its compliance with the PC/SC standard,
the Prox’N’Roll PC/SC HSP hides all technical specificities of contactless token, ensuring a simple
and straightforward implementation. A comprehensive SDK allows easy developments, in an open and
interoperable scheme.
SpringCard provides the PC/SC driver for Windows and makes use of open source PCSC-Lite stack for other
platforms.
The few things you have to know are that the Prox’N’Roll PC/SC HSP:
Operates with any credential form factor and any NFC-enabled objects running in card emulation
mode
Has the highest transaction time allowed by the technology up to 848kbps in ISO 14443, 256B frames.
Supported by major operating systems through standard drivers
Features
Features
TYPICAL APPLICATIONS
Identification of users or things
E-passports and other e-government documents
Authentication
Control access and security applications
Tech Specs
Tech Specs
RFID/NFC Standards
ISO 14443 A-B, ISO 15693, NFC peer-to-peer (ISO 18092 initiator, passive communication mode)
T=CL protocol on-board
Carrier frequency
13.56MHz (RFID HF, NFC)
RF field level
Typ.: 2.5A/m at 0cm, 1.5A/m at 1.5cm
Typ.: 2.5A/m at 0.5cm, 1.5A/m at 2.0cm
Operating distance
Typ.: 0-5cm, up to 7.5cm
Typ.: 0.5-5.5cm, up to 8.0cm
Card/tag baudrate
26kbps (ISO 15693), 106/212/424/848kbps (ISO 14443)*, 212/424kbps (ISO 18092)
Antenna
Integrated, Ø5.5cm, balanced
Communication with host
USB 2.0 full speed (1.1 compliant) 12Mbps – powered by the host (< 400mA @ 5V)
Standards
CCID 1.1 profile - PC/SC v 2.01
SDK
Free SDK for SpringCard PC/SC couplers
In-field firmware upgrade
Yes (USB / DFU using SpringCard FUU software)
Visual - sound
3 LEDs (RGB) - single tone beeper
Power
Powered by the USB bus (5V DC)
Size (DxH) - weight
Ø8.1cmx3cm - ca 113g
Ø5.5cmx0.6cm - ca 50g
Cable / connector
1.8m / USB type A
Environment
Temperature
Operating: -20°C – +70°C ∕ Storage: -40°C – +85°C
Humidity
0 – 90% (non condensing)
MTBF
500 000 hours
Approvals
Radio: EN 300 330 – EMC: EN 301 489 –
Security: EN 60 950-1 – CE mark –
FCC class B part 15 (SC16216 only)
FCC id (US) TYQ-PRNHSP01 - IC (Canada) 21625-PNRHSP01
Radio : EN 300 330 – EMC : EN 301 489
Security : EN 60 950-1 – CE mark
Environmental approvals
RoHS, WEEE
