Description

Plustek SecureScan
Utility management application to simplify travel documents (ID card and
passport) scanning. SecureScan enables you to specify your personalized scanning
conguration setting and detect ID document which are compliant to ICAO Doc
9303. Collects the personal data and photograph and automatically cuts the scans
to size.

Plustek SecureScan Manager
The database management software is customized for SecureScan scan results.
SecureScan Manager provides password login mechanism to secure data safety. It
enables administrators to specify personalized les management, such as
resolution, image output le format and save path. Data can be quickly retrieve via
keyword search in seconds.

Overview

The Automated Solution for Reliable and Efficient Data Capture

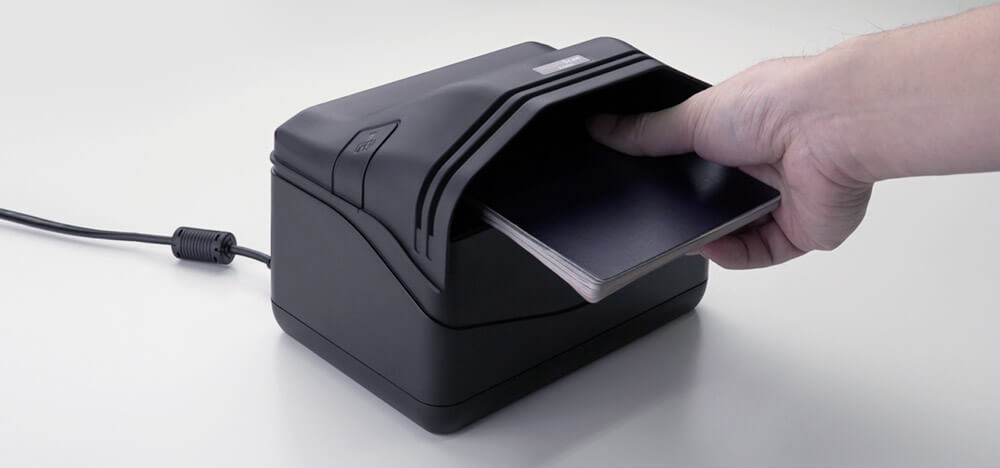

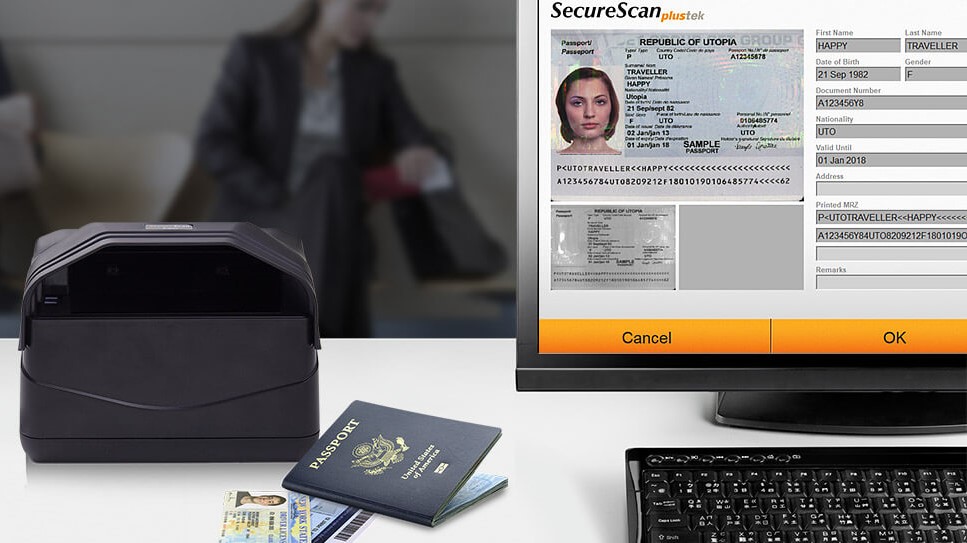

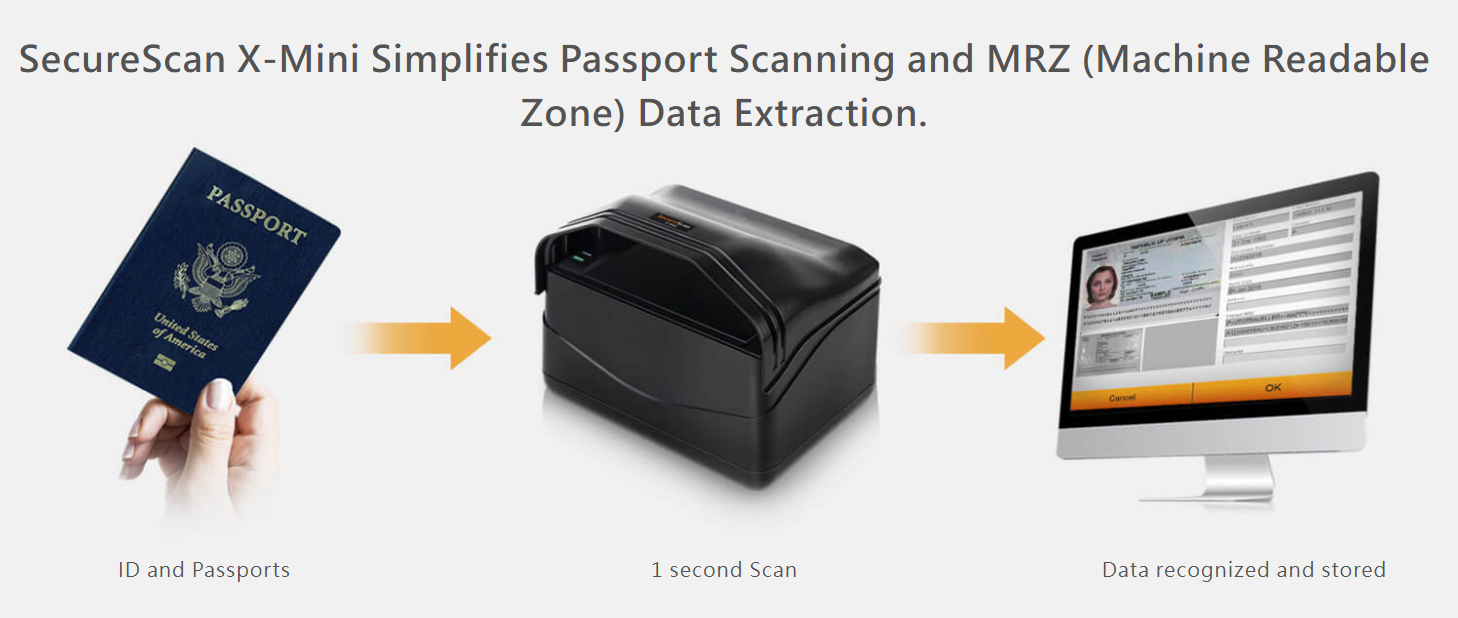

The Plustek SecureScan X-Mini is a powerful identication reader that provides seamless machine readable zone
(MRZ) capturing. The full-page scanner produces high-resolution, crisp and distortion free images from

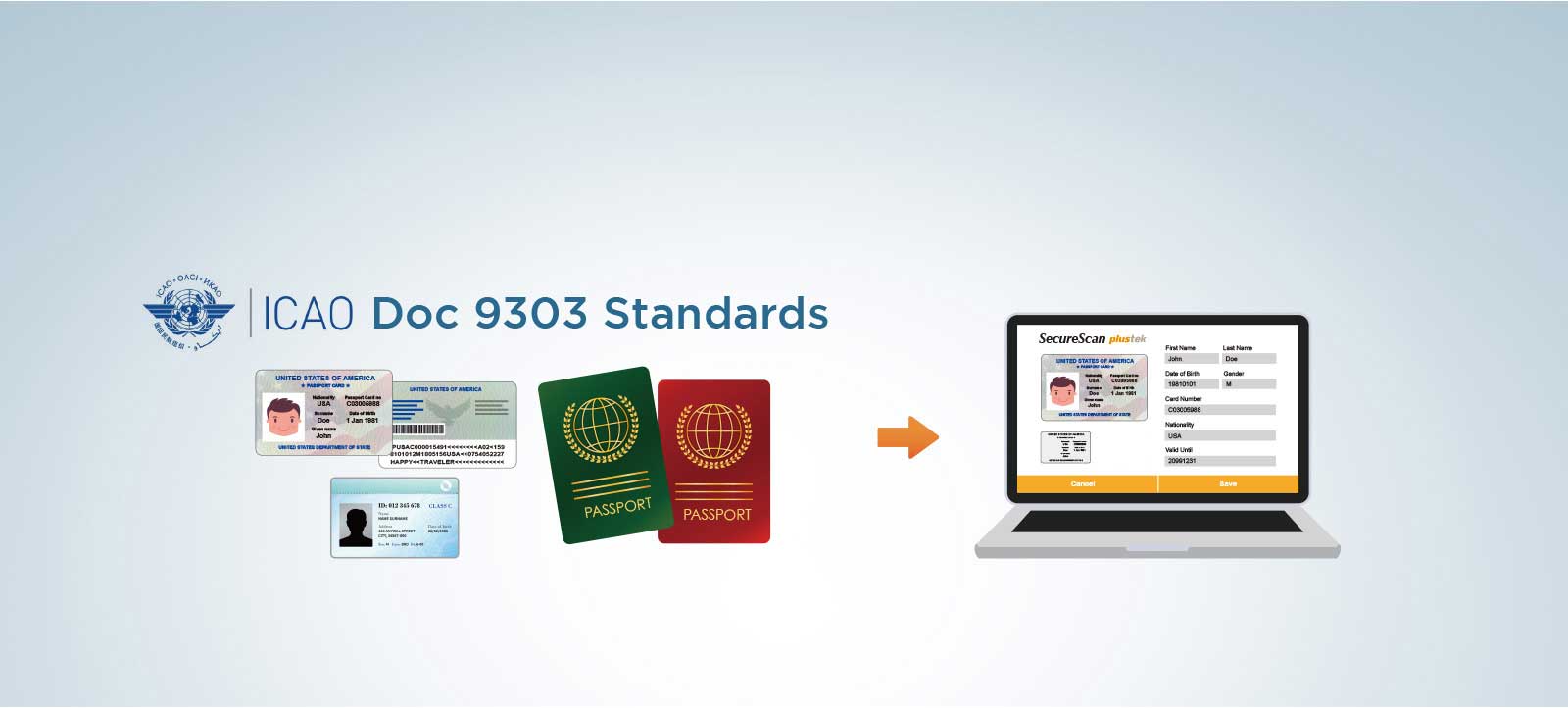

identication cards and passports that are compliant with ICAO 9303 standards. The complimentary application
has built-in OCR technology, made to recognize MRZ data and extracts the vital information into the SecureScan
database. The SecureScan X-Mini saves time and prevents typo or keystroke errors which can easily occur when
data is typed in manually. From hotel check-in, bank account application to car rental – the SecureScan X-Mini
simplies and accelerates reading, capturing and processing of identity documents.

Features

KEY FEATURES

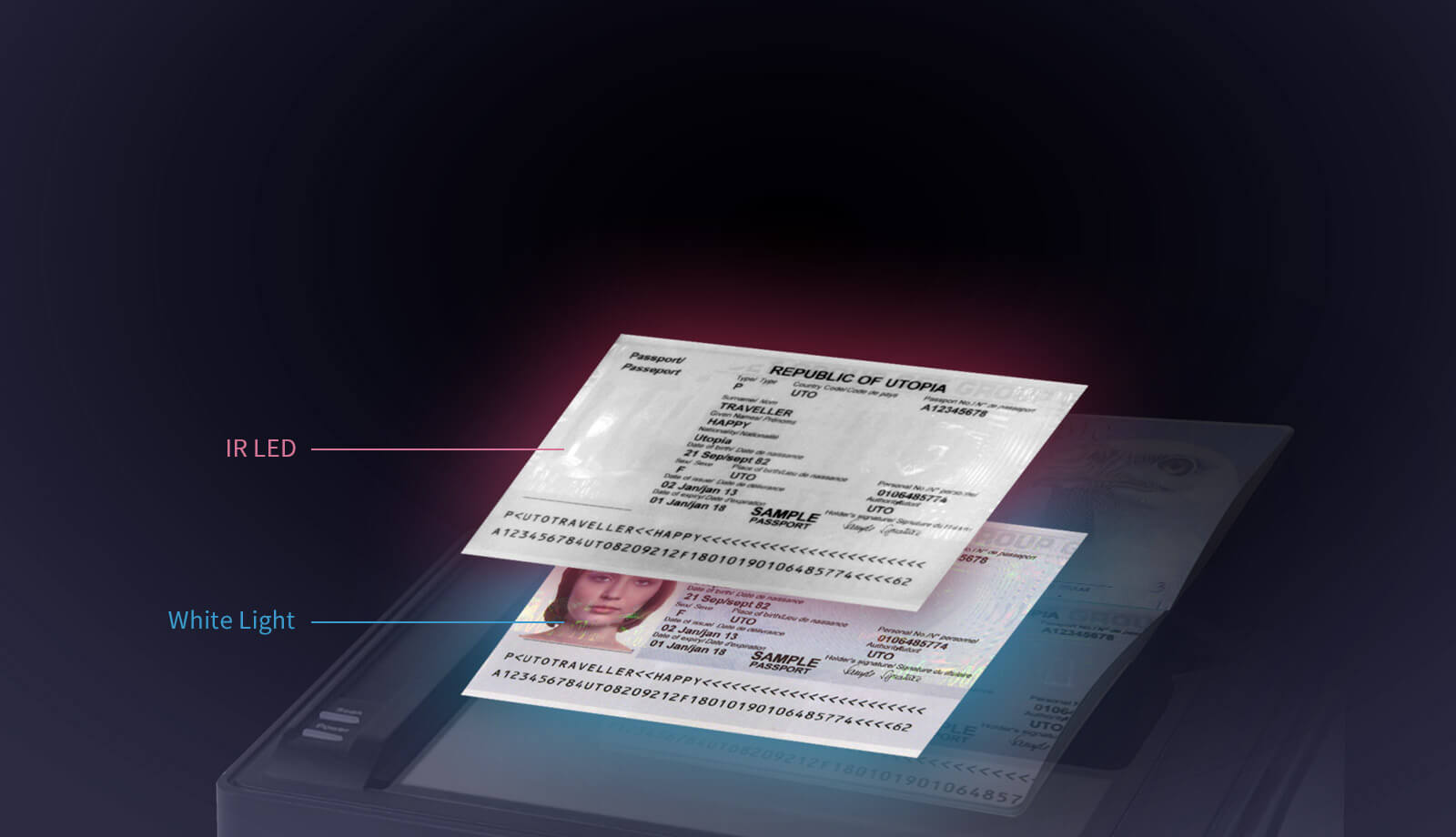

• Two light sources: Visible and Infrared(IR)
• Built-in OCR technology- reads and extract data from the machine-readable zone (MRZ).
• Intelligent discovery- start capturing data upon document detection

• 5-megapixel high-precision optical engine for high speed scanning

• Integrate- easily into kiosks counters
• BUS Powered- connect and operated via USB connection

Tech Specs

Hardware Specification:

Image Sensor CMOS
Light Source White LED / IR LED
Optical Resolution 5 Megapixels
Focus Fixed
Scan Modes Color: 24-bit Input; 24-bit Output
IR: 24-bit Input; 8-bit Output
Scanning Speed Approx. 1 sec (Color Mode, Full Page passport image capture)
Scanning Area (W x L) Maximum: 127 x 95 mm (5″ x 3.74″)
Acceptable Paper Sizes (W x L) Maximum: 125 x 88 mm (4.92″ x 3.46″)
Action Button Dual Auto Detect Sensors
Power Supply USB Power: 5V / 0.5A
Interface USB 2.0
Net Weight 0.86 Kgs (1.91 Lbs)
Dimensions (W x D x H) Without Cover: 195 x 139 x 100 mm (7.68″ x 5.47″ x 3.94″)
With Cover: 195 x 139 x 153 mm (7.68″ x 5.47″ x 6.02″)
OS Windows 7/8/8.1/10; Linux ready

Shipping & Delivery

Click to enlarge

Back to products

Plustek SecureScan X-Mini – (ID card and passport) scanning

Completely compliant with ICAO Doc 9303 standards

Capable of Reading MRZ and VIZ* with Visible Light Source

Quick Scan with OCR Capturing in a Sec

Efficient Identification Solution for a Variety of Industries

Integrate Identity Management Systems
