Suprema CoreStation is an intelligent door controller which provides the advantages of a biometric-enabled
security over a centralized access control systems. Designed for mid to enterprise-level systems,
the CoreStation handles up to 500,000 users with an incredible fingerprint matching speed of upto
400,000 match/sec. With the provisions of high-performance, biometric readiness, Ethernet communication,
CoreStation is capable of offering the full features of the BioStar 2 platform. The device provides
centralized biometric template management and also interfaces with complete set of reader technologies
including RS-485 (OSDP) and Wiegand. With its versatility, CoreStation is a perfect access control
solution for both new installations as well as a replacement of existing systems.

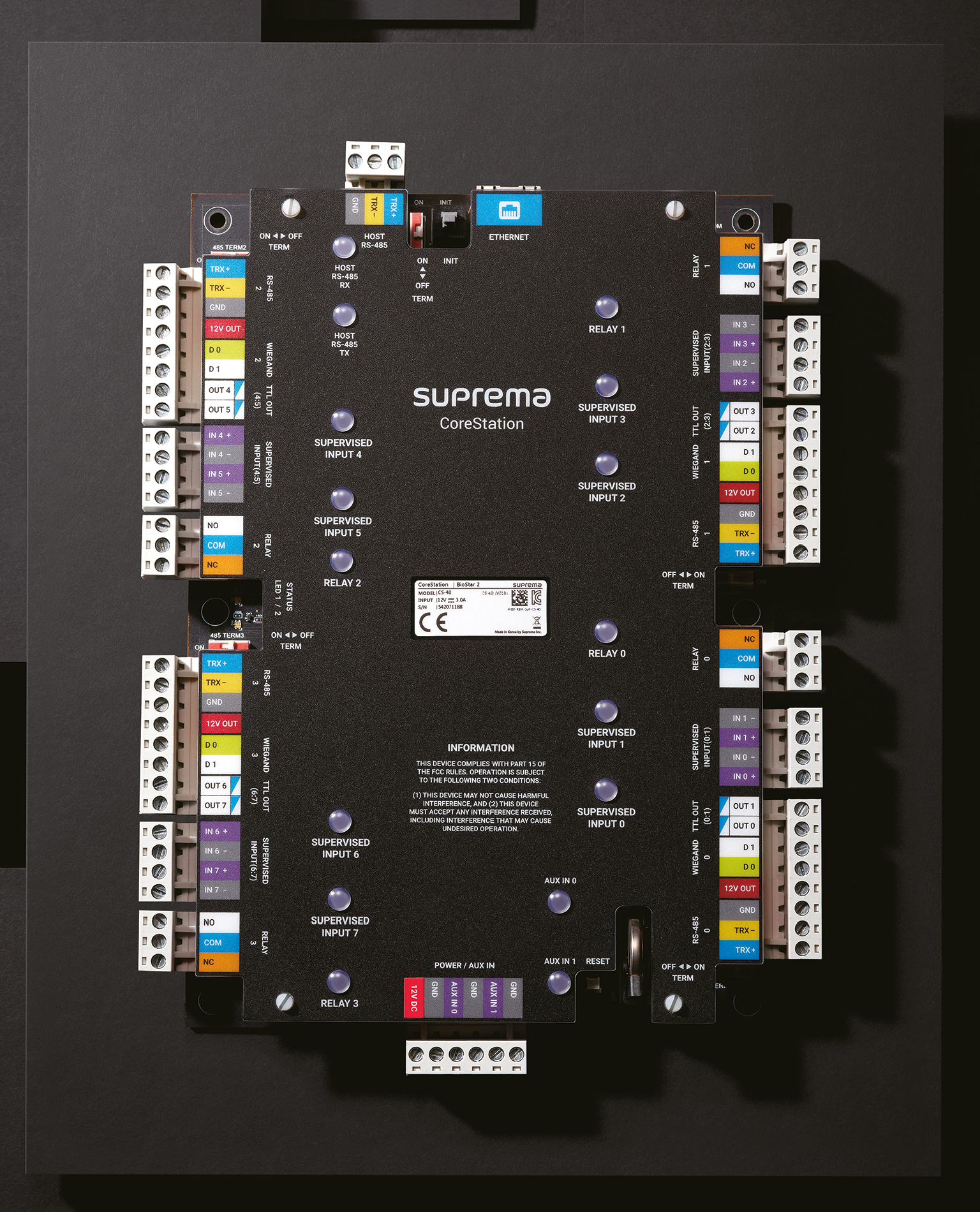

CoreStation CS40 – Intelligent Biometric Controller
Centralized Biometric Access Control
· Centralized storage of biometric and access group data
· Complete controller functionalities with fingerprint matching
· Multi-port interface for fingerprint/RF readers
– Supports locks, sensors, RTE, and alarm devices
Enterprise-level Capacity
· Max 500,000 users (1 million fingerprint templates)
– 500,000 RF cards/5,000,000event logs
· High-speed fingerprint matching
– Max 400,000 match/sec (genuine matching)
· UL 294 Compliant:
Highest safety and reliability certified by world-renowned label
Improved Security
· No Ethernet connection to the door reader
· No data storage at the door reader
· Secured communication between server and CoreStation (TLS 1.2)
System Flexibility and Scalability
· Controls up to 132 access points with extension modules (DM-20)
· Elevator Control (OM-120)
· Supports OSDP (Open Supervised Device Protocol)
Fully Compatible with BioStar X
· Easy operation and configuration
· Comprehensive access control and time & attendance functionalities

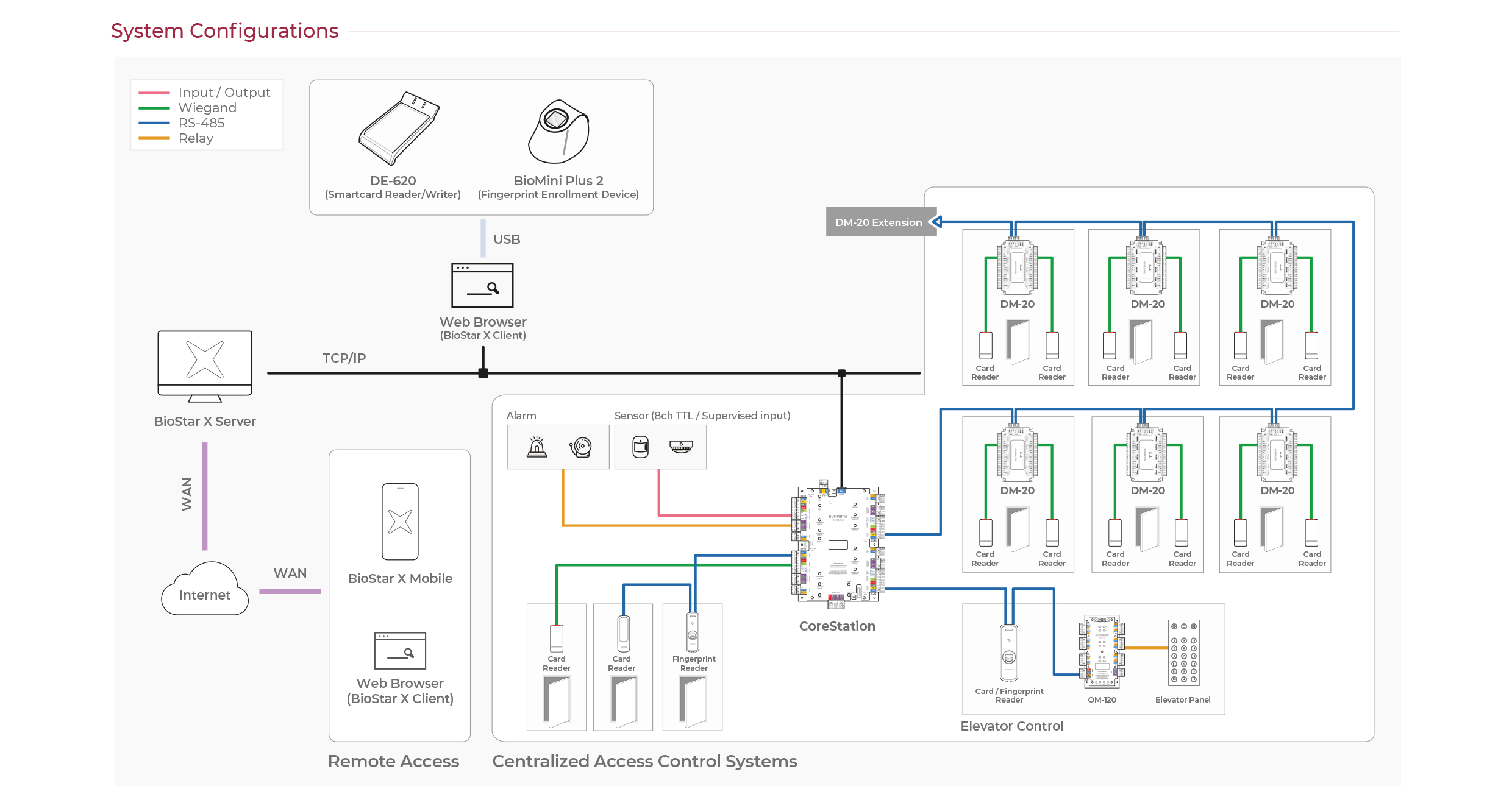

Configuration

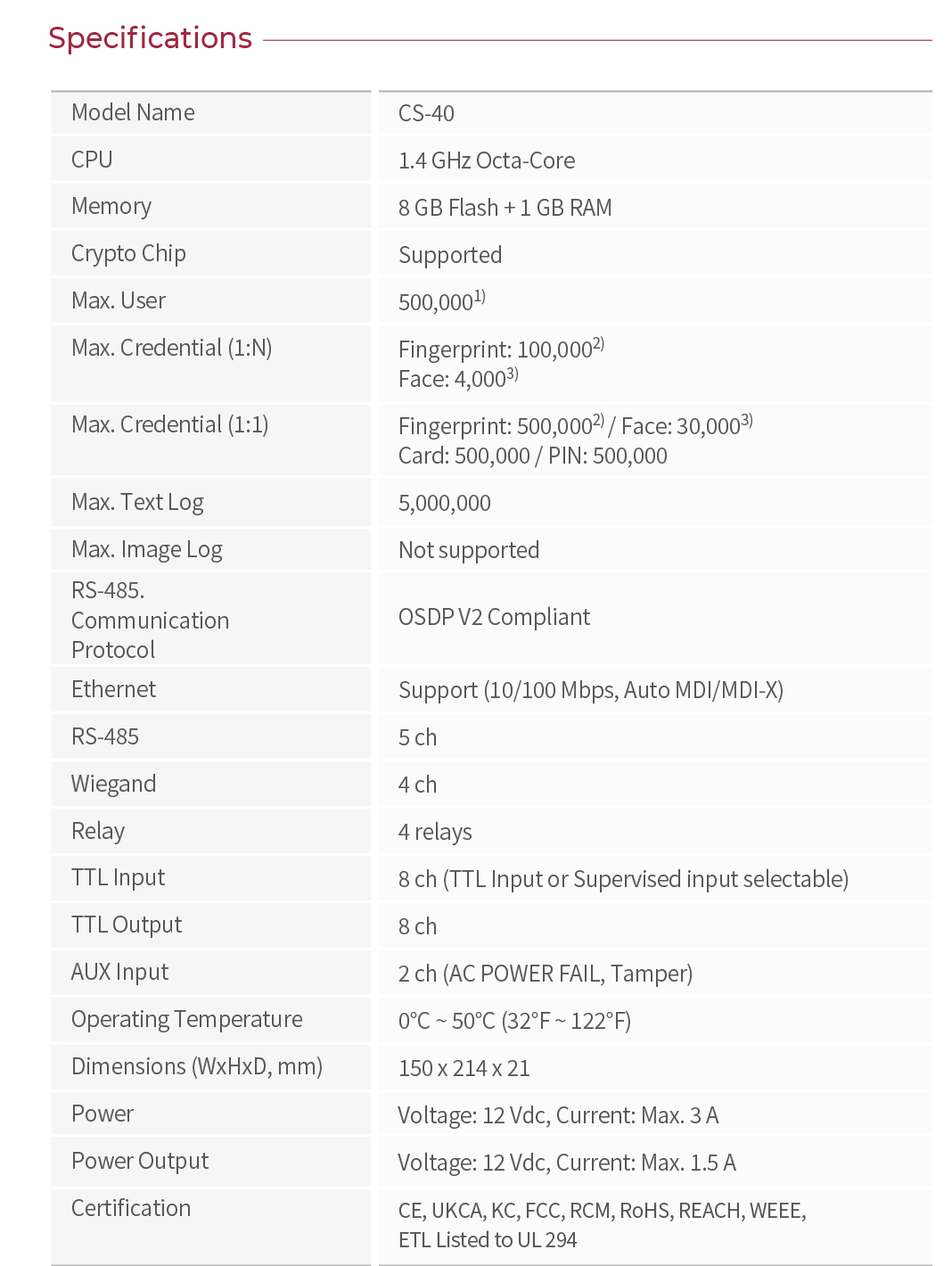

Specifications
