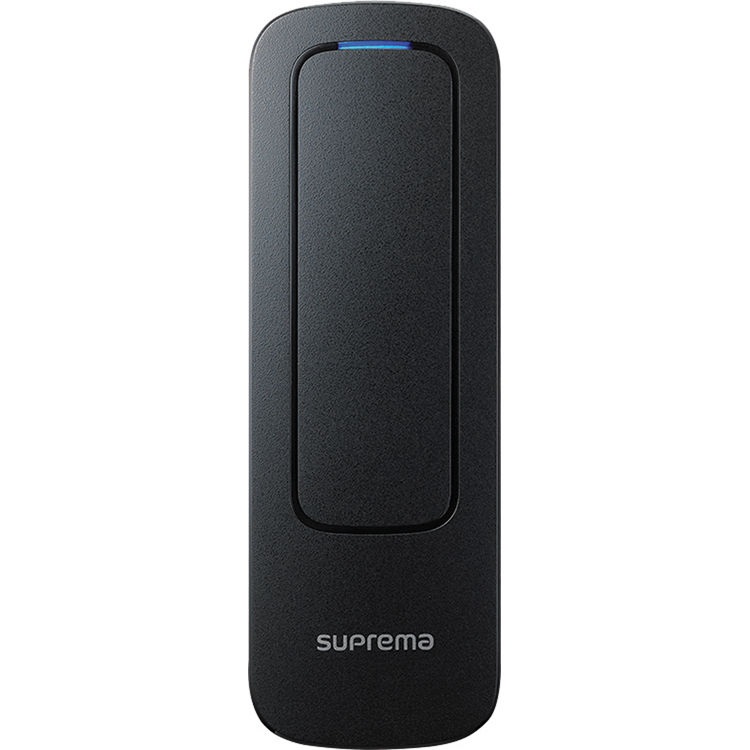

XPass D2 is an outdoor compact RFID reader based on Suprema’s state-of-the-art RFID technology and
multi-hardware platform, optimized for centralized access control systems such as Suprema’s CoreSta
tion. Using multi-form factor technology, mullion-type, gangbox-type and gangbox keypad-type are all
supported. With dual-frequency (125 kHz/13.56 MHz) RFID technology, XPass D2 also supports mobile
cards using NFC and BLE, the latest mobile communication technologies. Packed in a rugged
IP65/IP67 rated dust & waterproof performance as well as IK08 rated vandal-proof structure, suitable
for tough environment and outdoor installation.

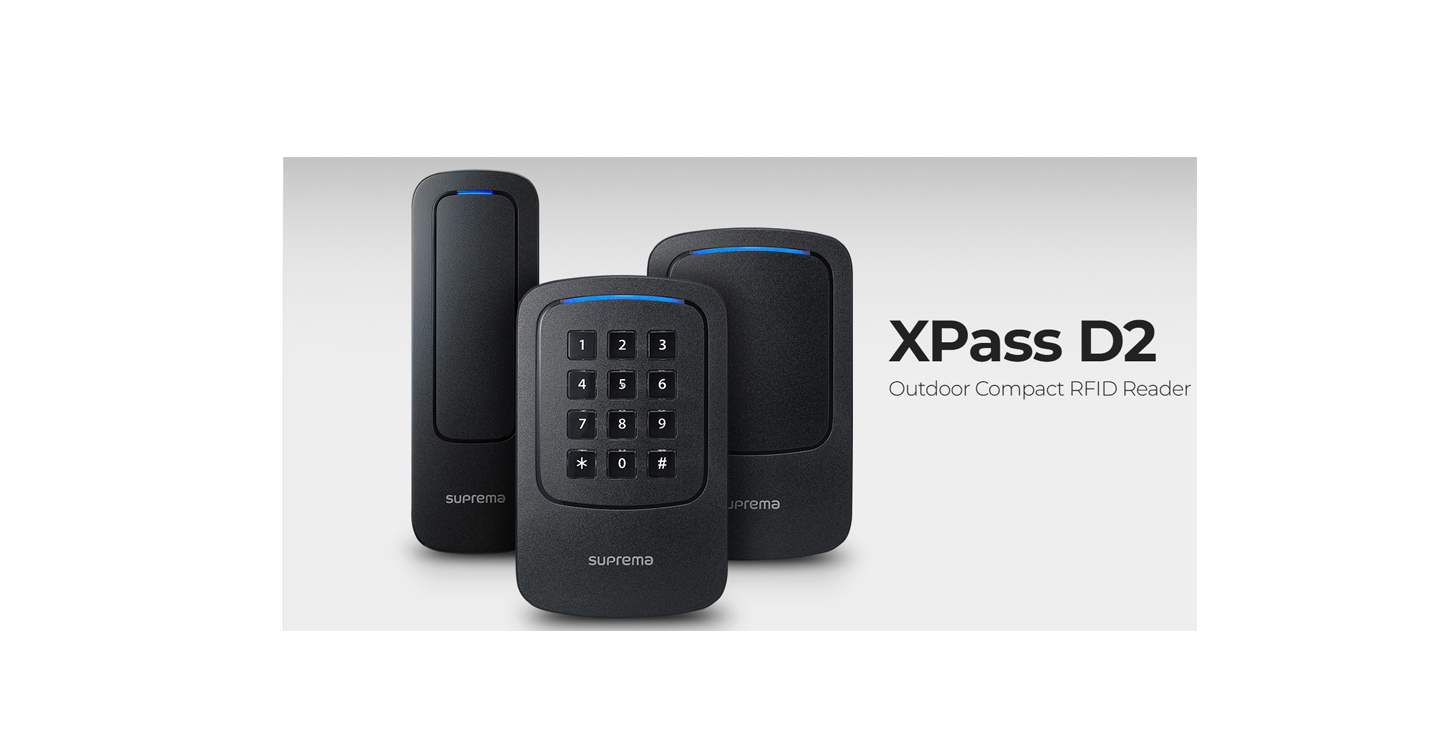

XPass D2 Outdoor Compact RFID Reader

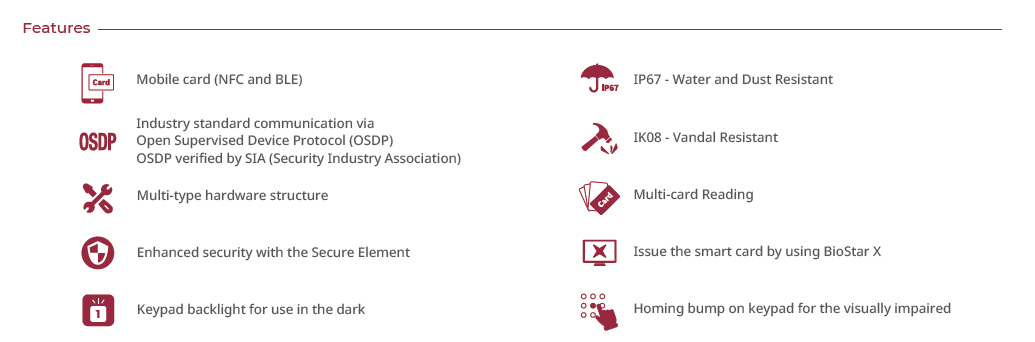

Mobile card (NFC and BLE)
Industry standard communication via
Open Supervised Device Protocol (OSDP)
OSDP verified by SIA (Security Industry Association)
Multi-type hardware structure
Enhanced security with the Secure Element
Keypad backlight for use in the dark
IP67 – Water and Dust Resistant
IK08 – Vandal Resistant
Multi-card Reading
Issue the smart card by using BioStar X
Homing bump on keypad for the visually impaired
Description
Overview
Overview

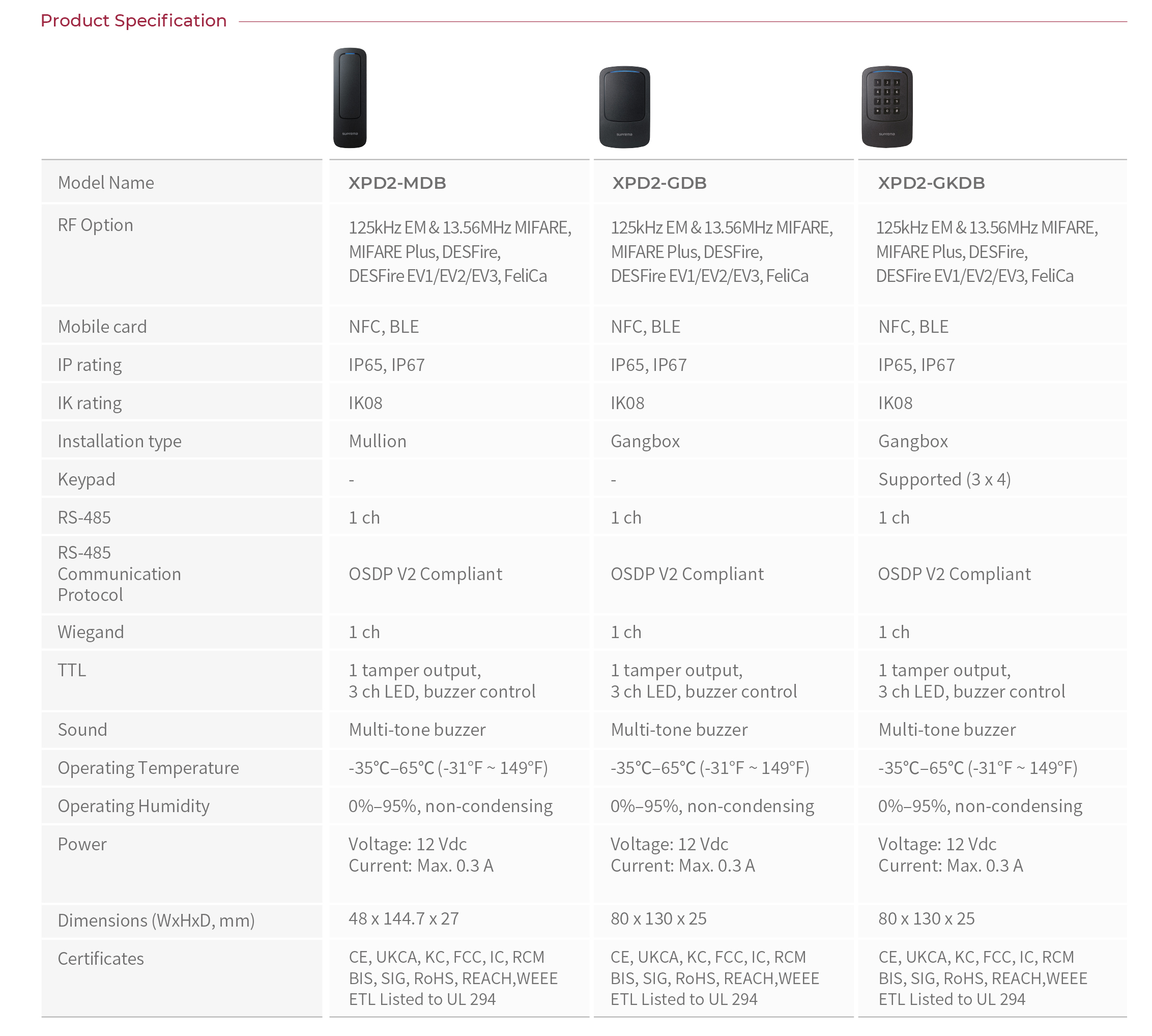

Specifications
