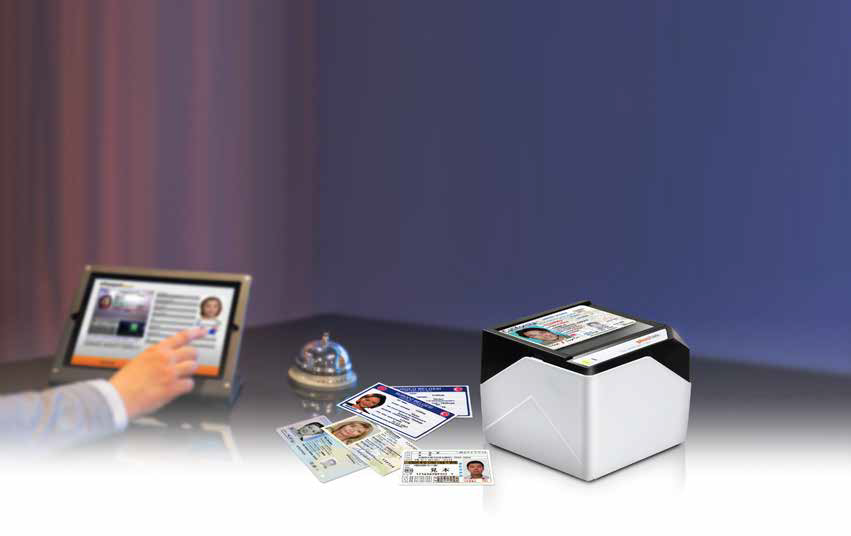

The Plustek SecureScan X-Cube is a compact and stylish MRTDs (Machine Readable Travel Documents) scanner,
designed to capture and verify relevant data, compliant with ICAO Doc 9303 standards TD1 size, and reduce the
chance of human error, resulting in the reduction in check-in time, increasing tra c ow and more accurate
customer pro le data. This innovative capturing device for data collection, and authentication of travel
documents such as ID cards and driver licenses, utilizes a high resolution image sensor (CMOS) with three di erent
wavelength illuminations (Visible, IR and UV) to enable quick full page image capturing and accurate MRZ reading.
Plustek SecureScan X-Cube – ID card scanning

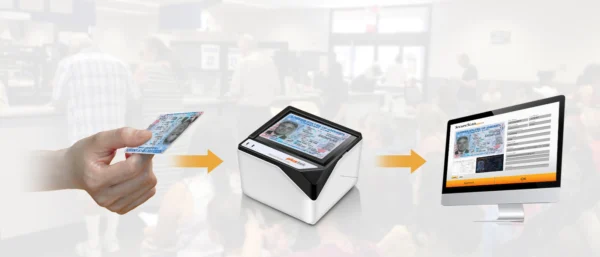

1-second Quick Scan with data capturing:
Capable of Reading MRZ and VIZ* with Visible Light Source
Integrate Identity Management Systems
Benefit Various Industries that Require ID Scanning
Description
Overview
Overview
Plustek SecureScan

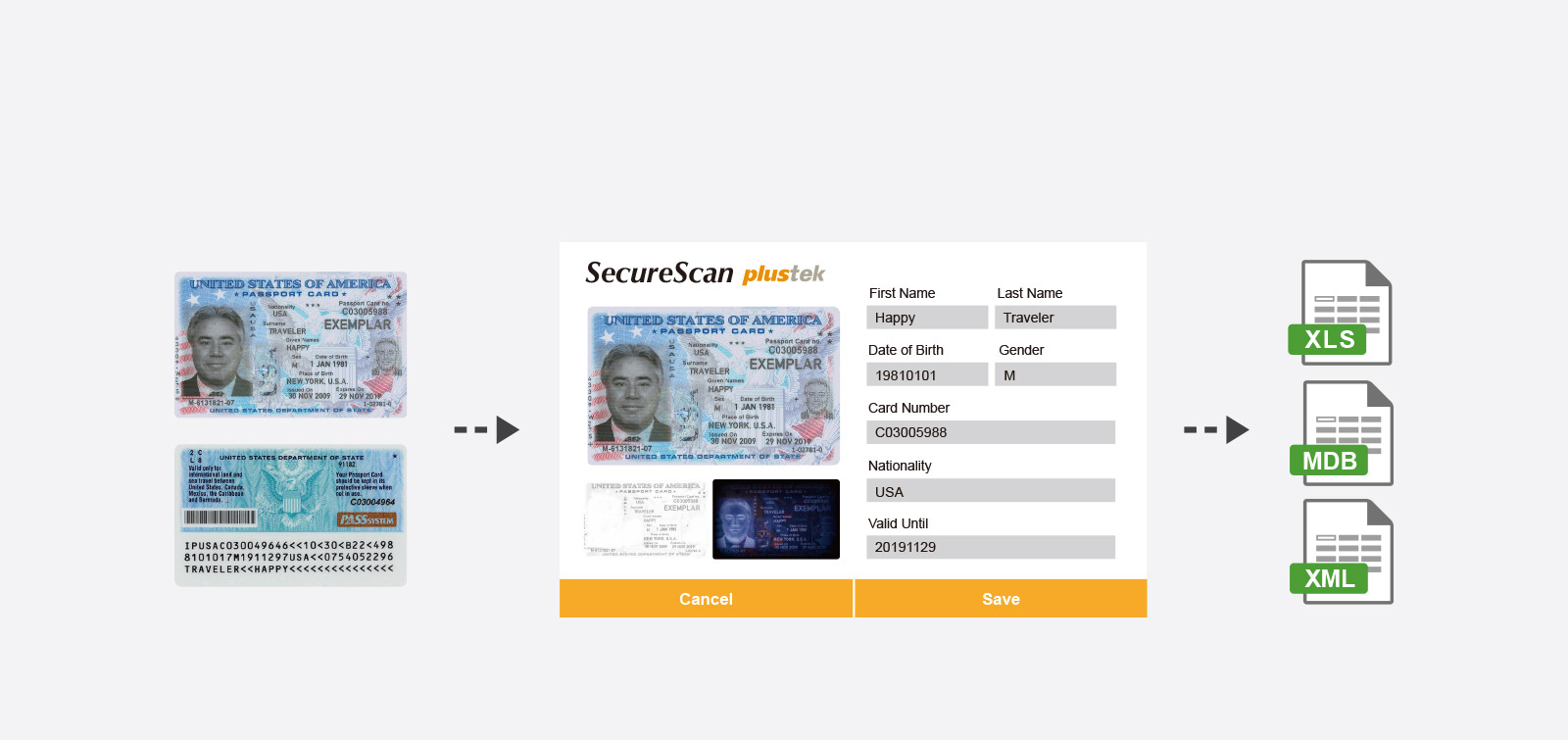

Button utility to simplify Travel documents (ID card scanning) scanning.
SecureScan enables you to specify your personalized scanning con guration
settings and scan documents without the touch of a button. Scanned
documents are automatically sent directly to Printer or MRTDs recognition. The
ID card or Passport MRZ recognition result with will pop-up before saving the
data.

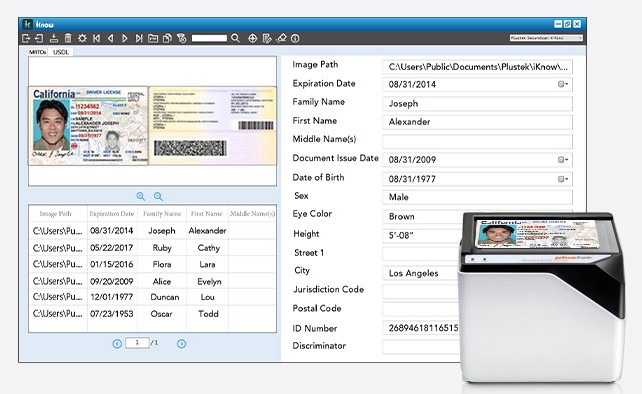

Plustek SecureScan Manager
The Data Management software is customized for SecureScan scan results. To
secure data safety, SecureScan Manager provides security of password login
mechanism. Also, SecureScan Manager enables you to specify your personalized
scanning con guration settings, such as resolution, image output le format
and save path, etc. For quick data search, simply key-in keyword on search tool
bar and shows matched result in seconds.
Features
Features
KEY FEATURES

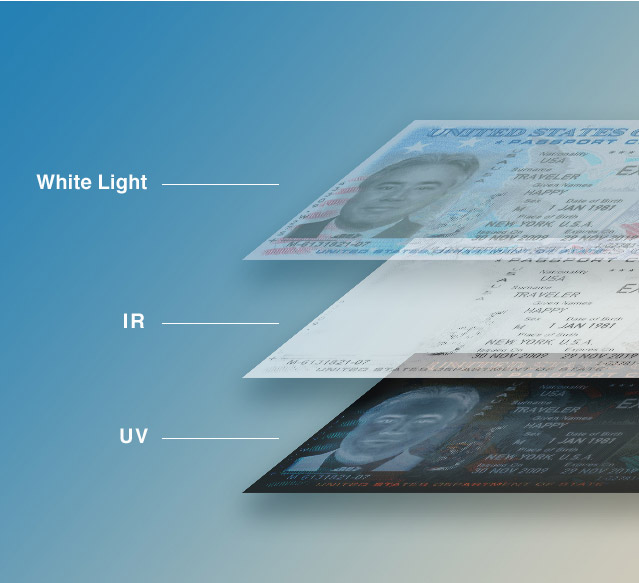

• Three different wavelength illuminations(Visible, IR and UV)
• Completely compliant with ICAO Doc 9303 standards TD1 size

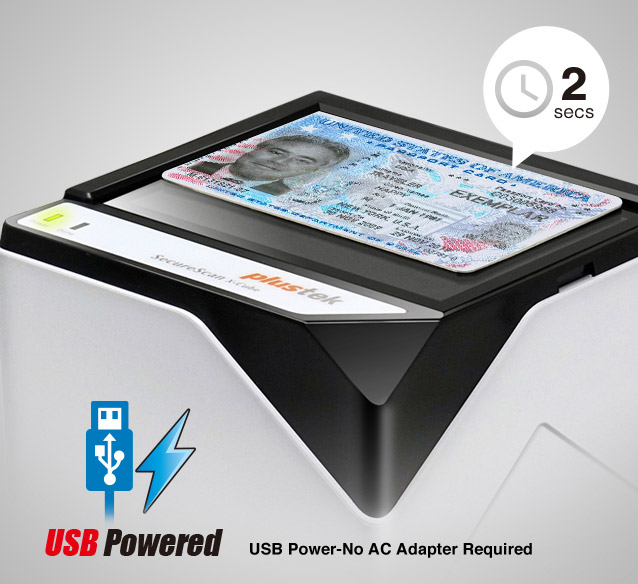

• High speed scanning: 2 seconds (3 illuminations images and data output）
• Utilizes the light source by ultraviolet for anti-fraud
• BUS Powered-connect and operated via USB connection
Tech Specs
Tech Specs
Image Sensor CMOS
Light Source White LED/IR LED/UV LED
Optical Resolution 5 Megapixels
Focus Fixed
Scan Modes Color: 24-bit Input; 24-bit Output
IR:16-bit Input; 8-bit Output
UV: 24-bit Input; 24-bit Output
Scanning Speed Approx. 1 sec (Color Mode)
Scanning Area (W x L) Max: 88 x 66 mm (3.46″ x 2.6″)
Acceptable Paper Sizes (W x L) Max: 88 x 54 mm (3.46″ x 2.1″)
Action Button Single Auto Detect Sensor
Power Supply USB Power: 5V / 0.5A
Interface USB 2.0
Net Weight 0.42 Kgs (0.93
Dimensions (W x D x H) 107.5 x 107.5 x 84 mm (4.23″ x 4.23″ x 3.31″)
OS Windows 7 / 8 / 10 / 11
Linux(SDK only)*[1]
