The MC210 is perfect for schools, colleges and medium sized
businesses for mid-volume issuance. Based on Matica’s
established print engine, when it comes to secure and reliable
ID card printing, you can trust the MC210 to deliver.

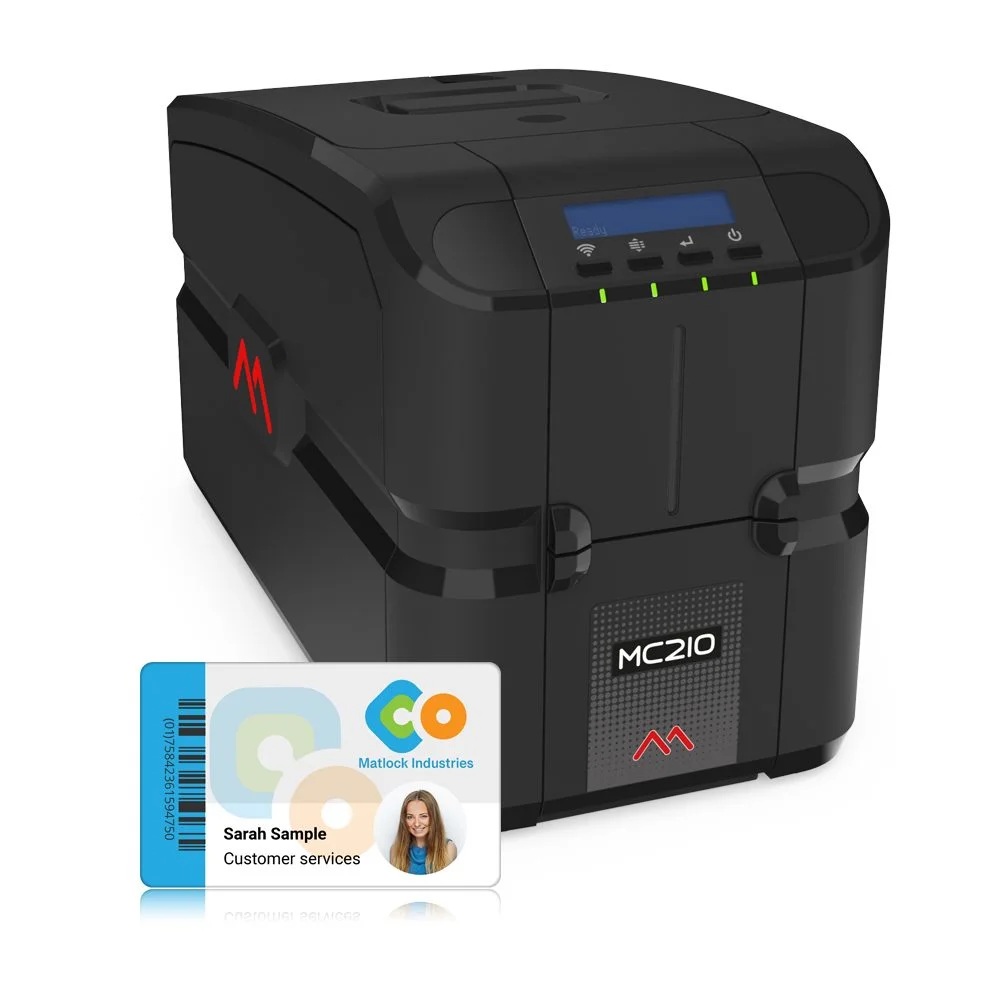

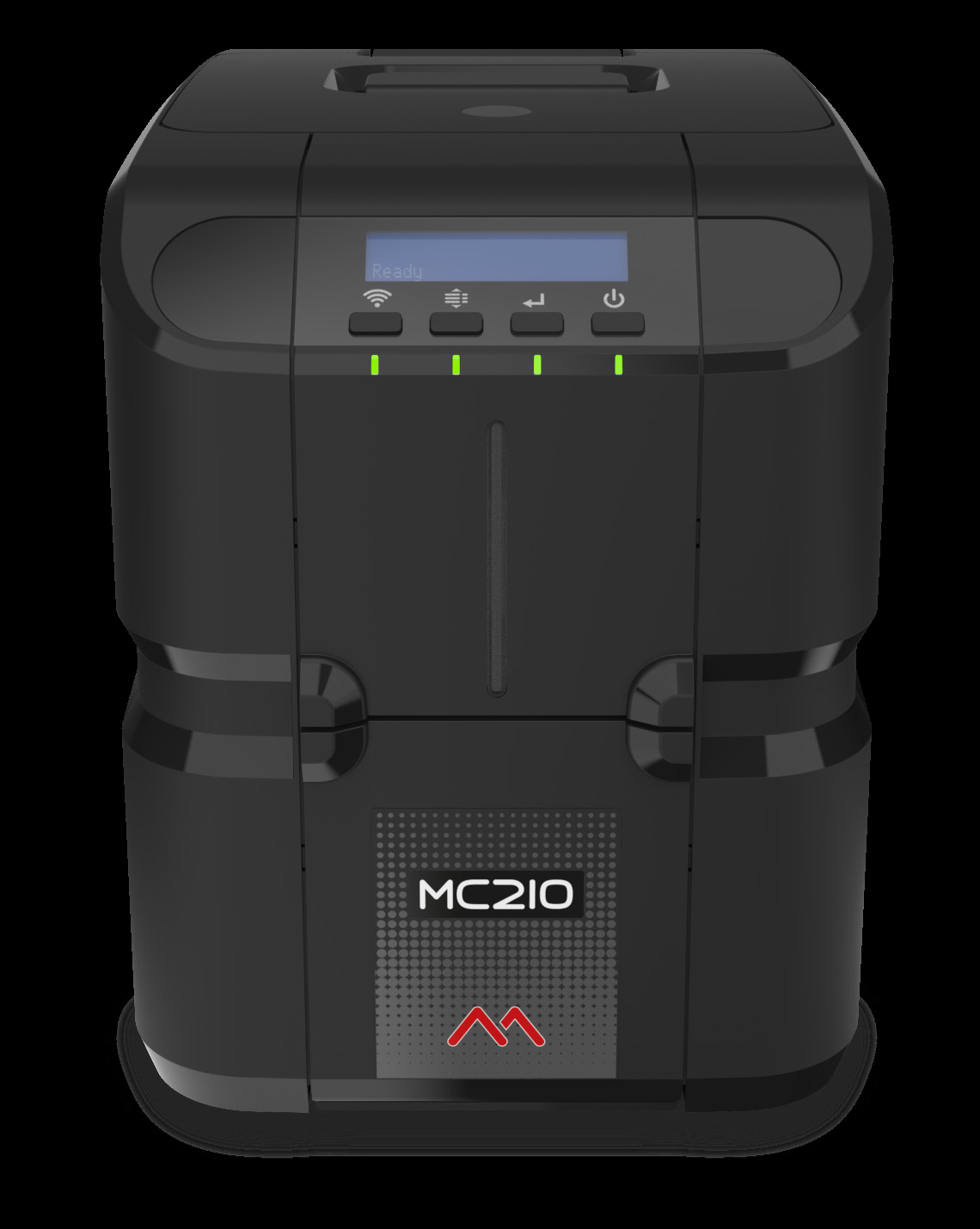

Matica MC210 Card Printer
MC210 delivers…
‣ Robust, reliable build quality
‣ High quality 300dpi printing
‣ Up to 180 color cards per hour
‣ Versatility – including multiple
encoding and lamination
‣ 1 year warranty
Description
Additional information
| printing |
Double Sided ,Single Sided |
|---|
Overview
Overview
Matica’s MC210 is a robust and reliable option for ID card
issuance, its ruggedized, stylish design makes it suitable for
use in any environment.
Upgradable from single to dual-sided, the MC210 is also
available with multiple secure card encoding options and can
be integrated seamlessly with an inline laminator.
Specifications
Specifications
Printer specifications
Print technology
Dye-sublimation, direct-to-card
Rewritable
Print resolution
300 dpi
Print area
53.98 x 85.6mm / 3.370’’ x 2.125’’ (CR-80 cards)
Print speed
• 180 cph (YMCKO single-side)
• 1000 cph (monochrome printing)
Print mode
Single or dual-sided (optional)
Printer memory
128 Mb
Communications interface
USB 2.0, Ethernet 10BaseT, 100BaseT
Easy to use, plug and print operation
• LCD display with graphical notifications
• 4 x LED status indicators
• Full front operation
• Drop in ribbon cassette with easy handling
• Automatic ribbon identification and setting
• Easy reach power button
• Easy maintenance access
Printer security
Support for Kensington® security lock
Printer dimensions (HxWxD)
256 x 202 x 405 mm / 10.6” x 7.9” x 15.9”
Weight
6.8 kg, 15 lb
Power supply
• 220-240V/110-115V, 50-60 Hz
• Standby mode and reduced power consumption
Operating environment
• Temperature: 15ºC – 40ºC, 59ºF – 104ºF
• Humidity: 20% – 65% (non-condensing)
Storage conditions
• Temperature: -5ºC to 70ºC, 23ºF to 158ºF
• Humidity: 20% to 70% (non-condensing)
Sound (ISO 7779)
Sound pressure less than 48dB (A)
Certifications
RoHs, CE, FCC, CQC, UL, WEEE, Proposition 65
(California, USA), Radio Equipment Directive (RED)
(2014/53/EU)
Warranty
1 year (subject to the use of chromXpert® ribbons)
Card specifications
Input hopper capacity
100 cards (0.76 mm / 30 mil thickness)
Output hopper capacity
30 cards (front)
80 cards (rear/reject)
Card thickness
• 0.25 mm – 1.25 mm / 10 mil – 50 mil
• Gauge adjustment
Card types
CR-80 PVC, PVC-C
Software specifications
XPS printer driver
Windows® (32/64bit) 7, 8.1, 10, 11, Server 2012,
2016, 2019, 2022
MacOS
MacOS: from Mavericks 10.9 to Ventura 13.1
Options
Magnetic stripe encoding
ISO 7811 HiCo/LoCo (factory fit only)
Smart card / Contactless encoding
• Contact PC/SC, EMV compliant
• Smart contact station: ISO 7816-2
• ISO14443A, B, ISO15693, MIFARE®, DESFire®,
HID iClass®
Dual-side activation kit PR10300016
Inline lamination
Single or dual-side, sold with compatiblilty plinth
