The MC310 integrates seamlessly with both lamination and
laser options making it ideal for secure ID projects and high
volume issuance.

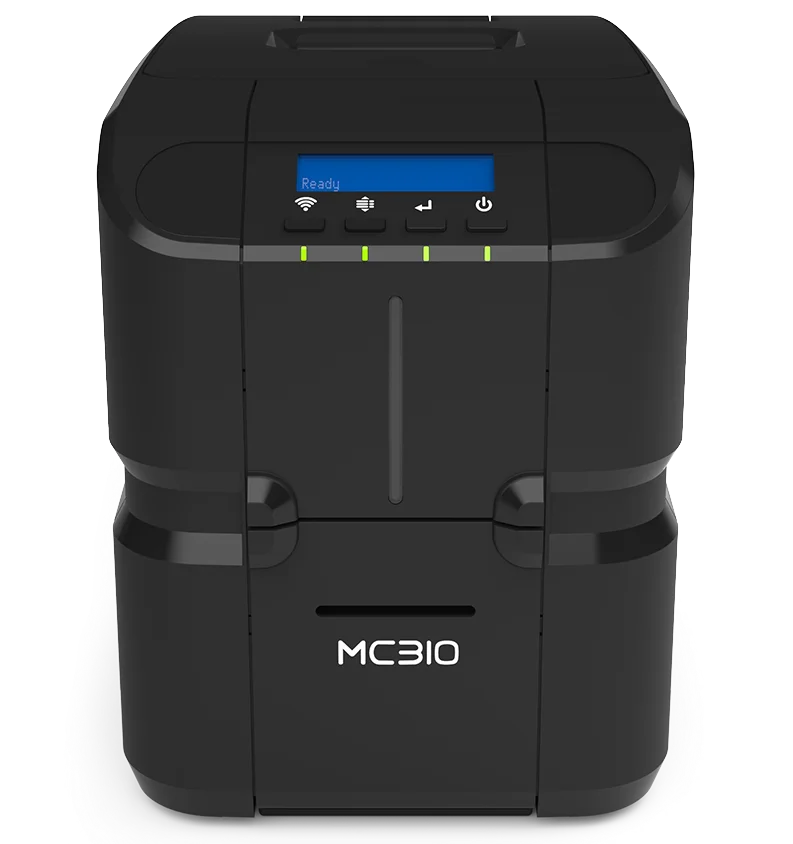

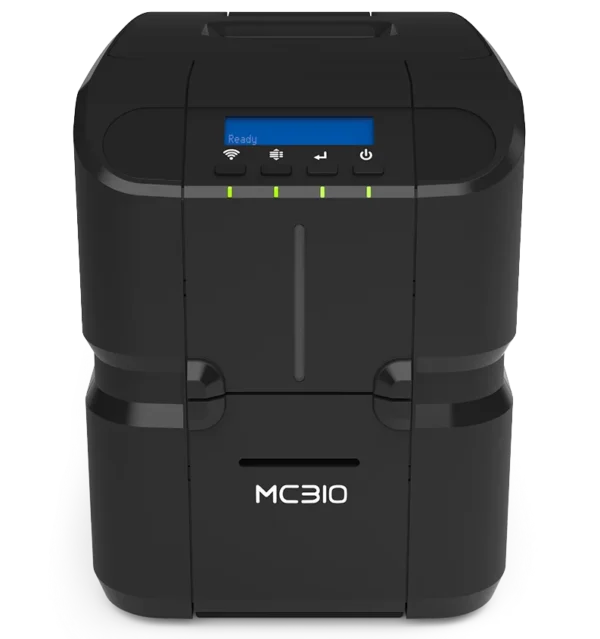

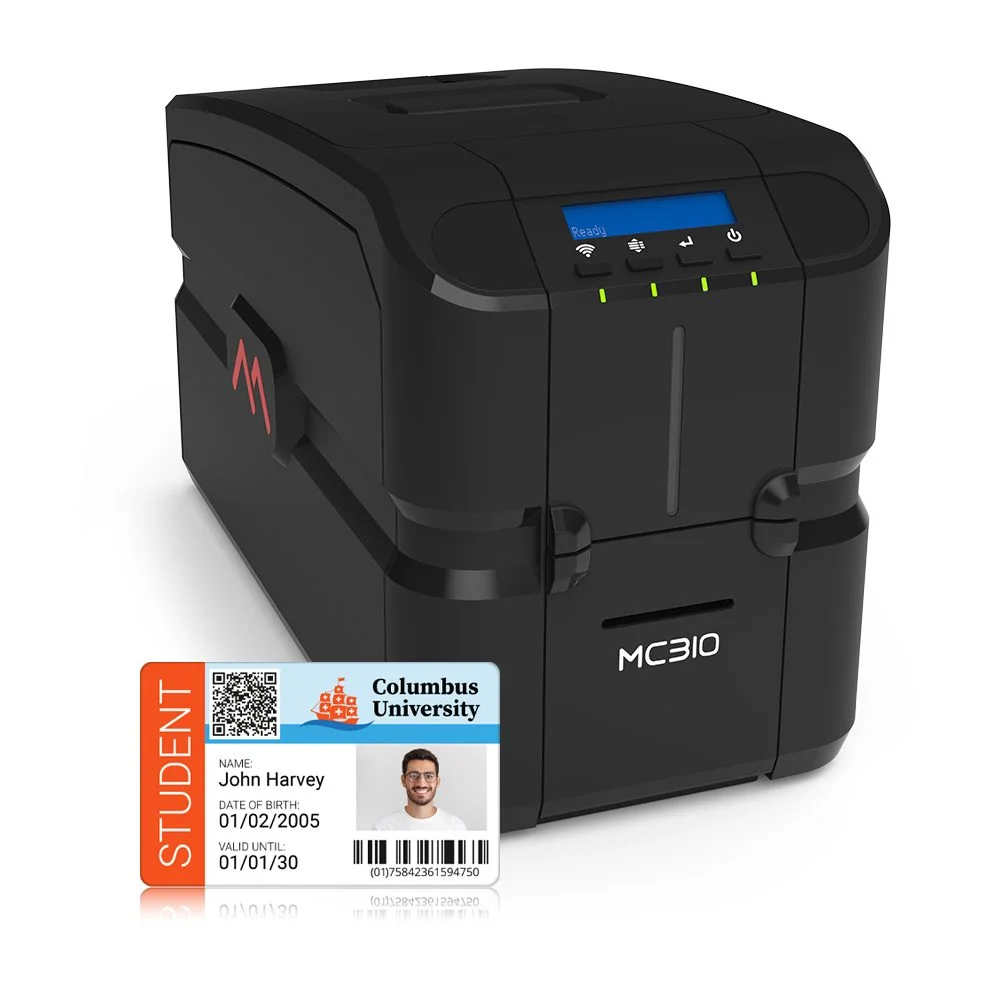

Matica MC310 Card Printer
MC310 delivers…
‣ Versatility – including multiple encoding,
lamination and laser options
‣ High quality TruEdge 300dpi printing
‣ Up to 180 color cards per hour
Ideal for…
‣ Secure ID projects
‣ Mid to high volume card issuance
Description
Additional information
| printing |
Double Sided ,Single Sided |
|---|
Overview
Overview
Matica’s MC310 is unrivalled in its versatility. It can be
upgraded from single to dual-sided and is available with
multiple secure card encoding options.
Specifications
Specifications
Printer specifications
Print technology
• Dye-sublimation, direct-to-card
• Rewritable
Print resolution
• 300 dpi
Print area
• 53.98 x 85.6mm / 3.370’’ x 2.125’’ (CR-80 cards)
Print speed
• 180 cph (YMCKO single-side)
• 1000 cph (monochrome printing)
Print mode
• Single or dual-sided (optional)
Printer memory
• 128 Mb
Communications interface
• USB 2.0, Ethernet 10BaseT, 100BaseT
Easy to use, plug and print operation
• LCD display with graphical notifications
• 4 x LED status indicators
• Full front operation
• Drop in ribbon cassette with easy handling
• Automatic ribbon identification and setting
• Easy reach power button
• Easy maintenance access
Printer security
• Support for Kensington® security lock
Printer dimensions (HxWxD)
• 256 x 202 x 405 mm / 10.6” x 7.9” x 15.9”
Weight
• 6.8 kg, 15 lb
Power supply
• 220-240V/110-115V, 50-60 Hz
• Standby mode and reduced power consumption
Operating environment
• Temperature: 15ºC – 40ºC, 59ºF – 104ºF
• Humidity: 20% – 65% (non-condensing)
Storage conditions
• Temperature: 5ºC to 70ºC, 23ºF to 158ºF
• Humidity: 20% to 70% (non-condensing)
Sound (ISO 7779)
• Sound pressure less than 48dB (A)
Certifications
RoHs, CE, FCC, CQC, UL, WEEE, Proposition 65
(California, USA), Radio Equipment Directive (RED)
(2014/53/EU)
Warranty
1 year (subject to the use of chromXpert® ribbons
Card specifications
Input hopper capacity
• 100 cards (0.76 mm / 30 mil thickness)
• Single card exception feeding
Output hopper capacity
• 30 cards (front)
• 80 cards (rear/reject)
Card thickness
• 0.25 mm – 1.25 mm / 10 mil – 50 mil
• Gauge adjustment
Card types
• CR-80 PVC, PVC-C, rewritable cards
Software specifications
XPS printer driver / MacOS
• Windows® (32/64bit) 7, 8.1, 10, 11, Server 2012,
2016, 2019, 2022.
• MacOS Mavericks 10.9 to Ventura 13.1
Integration tools
• EDIsecure® middleware
• SDK available for system integrators
Options
Magnetic stripe encoding
• ISO 7811 HiCo/LoCo (factory fit only)
Smart card / Contactless encoding
• Contact PC/SC, EMV compliant
• Smart contact station: ISO 7816-2
• ISO14443A, B, ISO15693, MIFARE®, DESFire®,
HID iClass®
Inline lamination
• Single or dual-side, sold with compatiblilty plinth
Printer security
• Mechanical locks
• Electromagnetic locks
Dual-side activation kit PR1030001
